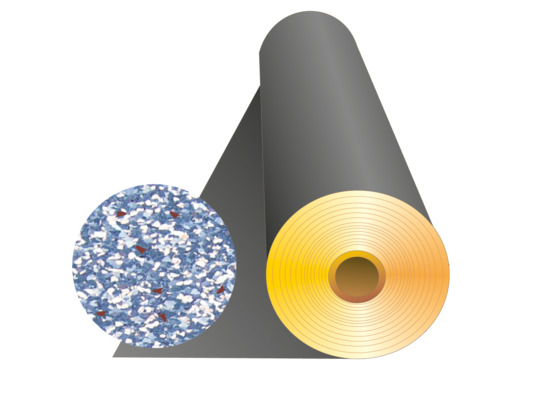

820 EUROFLOOR COMFORT

Product Typification

TODO

Basis	:	PU-cork-based mat.
Colour	:	Black-beige.

Product advantages:

PU-cork granulate based, elastic underlay.
To improve step-sound insulation and/or for height adjustments in subfloor constructions in new and old buildings.
Step sound improvement degree according to DIN 52210 certified with 2 mm vinyl floor covering: approx. 20 dB.
Sound insulating
Bridges cracks
Dimension stable
Very simple application
The mat is bonded to the prepared subfloor over the entire surface using approved adhesive.
Carpet, PVC-CV coverings and linoleum are installed with approved dispersion or reaction adhesives.
Multi-layer or solid parquet is laid with reaction adhesives approved for this purpose. (For solid planks, please consult our application technology department).
Very low emission. EMICODE EC 1.
Emission-tested building product according to DIBt principles.

Performances

Contact noise insulation	:	20 dB conform DIN 52210 with 2 mm PVC floor covering..
Flammability	:	E fl
Frost resistance	:	Yes.
Special quality	:	2 mm, 3 mm, 5 mm available

Application

Application:
To improve step-sound insulation and/or for height adjustments in subfloor constructions.

Working Process

Storage	:	Store cool and dry in unopened packaging.
Shelf Life	:	Minimum 72 Months, in unopened packaging.
Frost-proof	:	Yes.
Remarks	:	Technical information and safety data sheets of any laying materials and floor coverings used must be observed! Allow the underlay to air condition in the rooms before laying. The underlay must be relaxed and laid out flat. The installation recommendations of the floor covering manufacturers must be observed with regard to the suitability of special underlay sheets under their coverings. In the case of resilient floor coverings, reference must be made to the changed chair castor and indentation behaviour of the overall construction. Ask for the suitability of the floor coverings and use chair underlays if necessary. The possibility of cross lines being drawn by cutting tools cannot be ruled out for production reasons. These can be seen visually when thin floor coverings are laid through the top covering. Raised lines can be removed by grinding. Alternatively, they can be minimised with a scratch coat of Eurocol 900 Europlan DSP. Please also observe any regional or national fire protection regulations that may be affected.

* The mentioned values have been established in our laboratory and must be considered as guidelines in view of possible variations in climatic circumstances, subfloor compositions and layer thickness.

User manual:

Before use, temper the product according to the processing conditions.
The impact sound insulation mat must be rolled out, cut to size and bonded with a suitable Eurocol one-sided dispersion adhesive or reaction adhesive.
Make sure that the joints are tight.
The adhesive is glued 30 - 50 cm offset to the flooring to be laid later.
For thin coverings, a scratch coat of 900 Europlan DSP can be applied to level the surface to achieve a more even surface appearance.
When laying floating laminate or ready-made parquet, the mat can be laid loose.

Processing conditions:

At least 15 °C floor temperature,

at least 18°C material and room temperature,

35-75% relative humidity, recommended <65%.

Quality and guarantee

Environment and health

Safety and environment

:

Keep out of reach of children. Do not eat, drink or smoke while processing the product. Only give completely empty containers for recycling. Material residues can be disposed of as household waste.

Articles

articel	productname	packaging	shipping unit
820	Eurofloor Comfort	roll à (50*1) m, 2 mm	6 rolls/pallet
820	Eurofloor Comfort	roll à (30*1) m, 3 mm	6 rolls/pallet
820	Eurofloor Comfort	roll à (24*1) m, 5 mm	6 rolls/pallet
