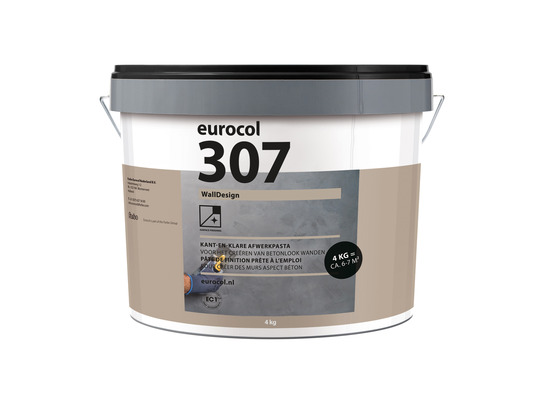

307 WALLDESIGN

Product Typification

Ready-to-use finishing paste for creating concrete-look walls.

Basis	:	Pigmented finishing paste based on synthetic resin dispersions.
Colour	:	Mouse Grey, Sand Grey, Shadow Grey and Olive Grey.
Consistency	:	Thin paste.

Product advantages:

Emicode EC 1PLUS (very low emissions)
Ready to use
Easy to process on the wall
Excellent adhesion
Very economical consumption
Suitable for wall heating constructions

Performances

Classification	:	NEN-EN 15824, dispersion-based finishing plaster for interior use. GEV Emicode EC 1PLUS (very low emissions) tested according to EN 13999-2/4. Suitable for BREEAM projects.
Consumption	:	4 kg for approx. 6 - 7 m². 1st layer approx. 0.4 kg per m², assuming an even surface. Uneven or rough surfaces increase consumption. The 2nd and 3rd layers are approx. 0.2 kg per m². Total consumption is approx. 0.6 kg per m², assuming 1 base layer and 2 layers for the concrete look.
Flammability	:	Non-flammable.

Application

Application:
Creates a decorative concrete look on interior walls with several thin layers. Suitable for bathrooms but not for shower corners.

Working Process

Layer thickness	:	Approx. 1 mm with 2 to 3 layers. Maximum layer thickness is approx. 2 mm per layer.
Tools	:	Small flat trowel or small spatula.
Storage	:	Store in a cool and frost-free place (between 5⁰ - 25 ⁰C)
Shelf Life	:	Minimum 12 months in unopened packaging.
Drying	:	12 - 24 hours, depending on layer thickness.
Sensitive to frost	:	Yes.
Remarks	:	The non-coated surface of Eurocol 305 BetonDesign cannot be used directly. During application on the prepared floor, use shoe covers for the shoes to avoid footprints. For continuous surfaces use material from one batch or mix and homogenise appropriate quantities together. Technical information and safety data sheets of other installation materials used must be observed! Eurocol 305 BetonDesign is not suitable for levelling substrates or bridging cracks in substrates. The system cannot be used in direct wet areas. Please note: mineral levelling compounds may under certain circumstances have a tendency to form cracks. Please refer to the reference document "RD_001_mineral levelling compounds". EMICODE, for further information see www.emicode.com

* The mentioned values have been established in our laboratory and must be considered as guidelines in view of possible variations in climatic circumstances, subfloor compositions and layer thickness.

Consumption:
4 kg for approx. 6 - 7 m². 1st layer approx. 0.4 kg per m², assuming an even surface. Uneven or rough surfaces increase consumption. The 2nd and 3rd layers are approx. 0.2 kg per m². Total consumption is approx. 0.6 kg per m², assuming 1 base layer and 2 layers for the concrete look.

Substrate:

307 WallDesign should always be applied to suitable, load-bearing, flat, grease-free and dust-free walls.
Seal any large holes in advance and level the walls completely with a suitable cement-based or gypsum-based product to create a flat, evenly absorbent surface.
307 WallDesign is suitable for levelling surfaces up to 2 mm.
Keep transitions between different materials clear and seal them if necessary.
Make the walls dust-free and tape off ceiling, window frames and tiles if necessary.
Always consult our technical product information sheets beforehand. In case of doubt about applications, contact our Technical Advice Department in advance on T +31 (0)75 627 16 30.

User manual:

Ensure a room temperature of approx. 15 - 20 °C.
Stir the paste with a trowel before use.
Apply the 1st layer with a small flat trowel or spatula as a thin covering layer of approx. 1 mm. Place small amounts onto the trowel at a time. The flatter the 1st layer is, the flatter the final wall will be with a more uniform appearance. Tip for external corner finishing: spread the paste on both sides of the corner and smooth it with a corner trowel. Rub off excess paste from the corner. Then allow the first coat to dry sufficiently so that it can be sanded.
After drying, any unwanted irregularities can be sanded off gently with fine sandpaper (180 grit) or a sander. Then use a lint-free cloth to make the surface dust-free.
Next, apply the following layers thinly in random directions. Make short strokes with the trowel to achieve a more concrete-like look. Longer strokes give a more uniform appearance. Scrape off the material immediately after each application. Repeat a number of times depending on the desired end result.
Either leave a drying time between the layers of 307 WallDesign or process the layers in quick succession (wet in wet). 2 to 3 layers are generally sufficient, depending on the surface.
By scraping the surface with the side of the trowel or spatula during the last layer, you can achieve a light gloss effect.
Once the final coat has dried, sand the wall as described above. Sanding creates more depth and even more colour nuances. Then remove dust from the wall once again.
Depending on your personal taste and the application, you can apply an easily removable, colour-intensifying protective layer with 308 WallDesign Finish or, for heavier use (e.g. bathroom, kitchen back wall, etc.) with 311 TopCoat, a 2-component PU lacquer.
Watch the 307 WallDesign instructional video beforehand.
To clean 307 WallDesign, use our 312 Conditioner or a neutral all-purpose cleaner. Never use chlorine or bleach!
Dispose of product residues and cleaning water according to the local environmental regulations and do not pour into drains.
Avoid contact with eyes and skin and use suitable personal protective equipment (see our safety data sheet).

Contains methylchloroisothiazolinone and methylisothiazolinone (3:1), benzisothiazolinone, methylisothiazolinone. May cause an allergic reaction.

Processing conditions
Desired ambient temperature : 15° - 20 °C.
Relative humidity : 40 - 70%.

Instruction movie:
Click

Quality and guarantee

dop-declaration

Environment and health

Hazard Class	:	None.
Safety and environment	:	Safety data sheets of Forbo Eurocol products according to EEG-guideline 91/155. Keep out of reach of children. Do not eat, drink or smoke while processing the product. Only give completely empty containers for recycling. Bound material residues can be disposed of as household waste.
MSDS	:	Available on request.
Substances causing allergy	:	Enthält 1,2-Benzisothiazol-3(2H)-on, Gemisch aus: 5-Chlor-2-methyl-2H-isothiazol-3-on [EG nr. 247-500-7] und 2-Methyl-2H-isothiazol-3-on [EG nr. 220-239-6] (3:1). Kann allergische Reaktionen hervorrufen.

Articles

Artikcle	Definition	Packaging	EAN code
307	WallDesign	4 kg bucket
	30711 mousegrey		8710345 307116
	30713 sandgrey		8710345 307130
	30715 shadowgrey		8710345 307154
	30717 olivegrey		8701345 307178

Colours are made to order with a lead time of up to 5 days.
